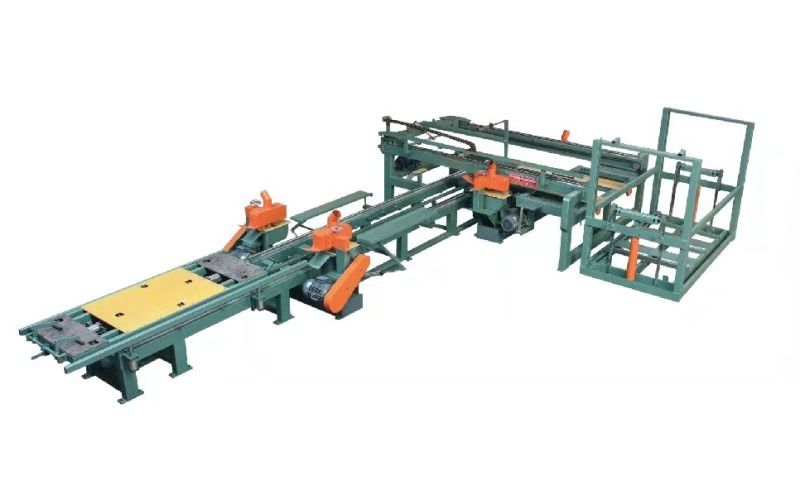

L-model Vertical Veneer Jointing Machine

Core veneer machine is suitable for core joining together in plywood production line. It can work different length sizes of core veneer with high strength thread and hot melt adhesive connection as one whole body Then facilitate the subsequent stages of production of plywood line. The whole process can be operated by one worker, it is time-saving and efficient.

Quantity:
  • CXCT-4C1
  • CHANGXING
  • 84659400

Application

Core veneer jointer machine is suitable for core joining together in plywood production line. It can work different length sizes of core veneer with high strength thread and hot melt adhesive connection as one whole body Then facilitate the subsequent stages of production of plywood line. The whole process can be operated by one worker, it is time-saving and efficient.


1.Working principle
The core veneers (1.0-4.0mm thickness panels) after drying may have different length and thickness, and the shapes may get irregular, this core veneer composing machine can detect width, thickness, cavities of the core veneer , trimmed, glued, composed, cut to length and stacked automatically. With this machine, the core veneer with different sizes can be composed in one whole sheet.

2.Working process
1. feeding delivery----2. plate correction----3.the former drive----4. cut and control-----5. after the drive----6.docking puzzle----7.finished plate cut off The entire operation process only by a person operation. Finished plate, small material in the board, abandoned scrap, can be stitching, not only saves the cost, but also saves the artificial.

Parameter

SPECIFICATIONS FOR 4 FT PLYWOOD CORE VENEER JOINTING MACHINE



Driver system

Driver

Servo-type

Siemens servo motor

Cutter driver

motor+electromagnetic clutch

Taiwan Chain Tail clutch

Driver reducer

Star type reducer

8/1





Dimension

complete machine

L*W*H(mm)

12000*2600*2500

Jointing machine

L*W*H(mm)

3600*2600*2500

veneer stacker

L*W*H(mm)

4000*2200*2500



Control system

Control module

PLC computer module

TDATDA PLC

rotary actuator

photoelectric sensor

FESTO(germany)

Heating control

*

Automatic Control



Characteristic

1.PLC control, unmanned operation, automatic process, laborsaving
2.Precise thickness checking, even thickness, mini polishing
3.Servo drive, effective overlap and joint control
4.Supported by German Festo, Danfoss, Taiwan Taida, Japanese Mitsubishi and other international to level brands.
5.High strengthened thread, improve product horizontal tensile force and flexibility, no break
