| Quantity: | |
|---|---|
CXCT-4C1
CHANGXING
84659400
Application
Core veneer jointer machine is suitable for core joining together in plywood production line. It can work different length sizes of core veneer with high strength thread and hot melt adhesive connection as one whole body Then facilitate the subsequent stages of production of plywood line. The whole process can be operated by one worker, it is time-saving and efficient.
1.Working principle

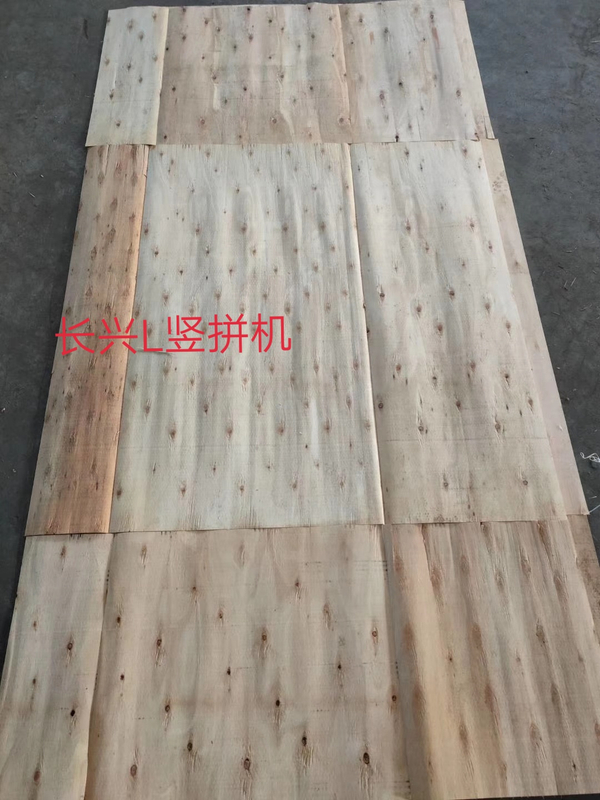

The core veneers (1.0-4.0mm thickness panels) after drying may have different length and thickness, and the shapes may get irregular, this core veneer composing machine can detect width, thickness, cavities of the core veneer , trimmed, glued, composed, cut to length and stacked automatically. With this machine, the core veneer with different sizes can be composed in one whole sheet.
2.Working process
1. feeding delivery----2. plate correction----3.the former drive----4. cut and control-----5. after the drive----6.docking puzzle----7.finished plate cut off The entire operation process only by a person operation. Finished plate, small material in the board, abandoned scrap, can be stitching, not only saves the cost, but also saves the artificial.
Parameter
SPECIFICATIONS FOR 4 FT PLYWOOD CORE VENEER JOINTING MACHINE | |||
Driver system | Driver | Servo-type | Siemens servo motor |
Cutter driver | motor+electromagnetic clutch | Taiwan Chain Tail clutch | |
Driver reducer | Star type reducer | 8/1 | |
Dimension | complete machine | L*W*H(mm) | 12000*2600*2500 |
Jointing machine | L*W*H(mm) | 3600*2600*2500 | |
veneer stacker | L*W*H(mm) | 4000*2200*2500 | |
Control system | Control module | PLC computer module | TDATDA PLC |
rotary actuator | photoelectric sensor | FESTO(germany) | |
Heating control | * | Automatic Control | |
Characteristic
1.PLC control, unmanned operation, automatic process, laborsaving
2.Precise thickness checking, even thickness, mini polishing
3.Servo drive, effective overlap and joint control
4.Supported by German Festo, Danfoss, Taiwan Taida, Japanese Mitsubishi and other international to level brands.
5.High strengthened thread, improve product horizontal tensile force and flexibility, no break
Cell/Whatsapp:+86 13695390052
