1. Machine Introduction

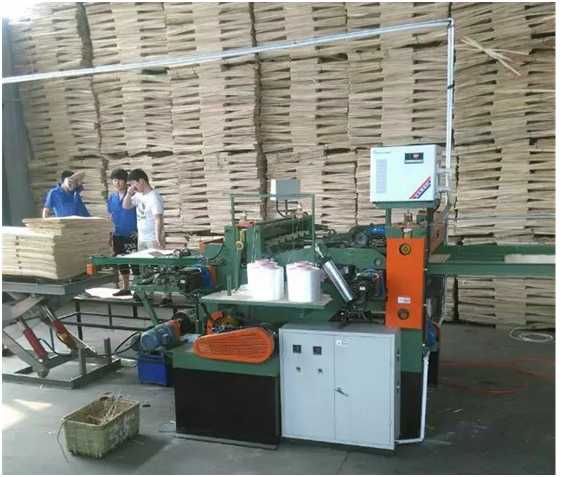

Automatic fali Veneer Composing machine
One operator required, no overlap or open joint, no break
Save 70% core finishing
Save 80% assembling work
Save 50% puttying work
Features and advantages:
PLC control, unmanned operation, automatic process, labor saving
Precise thickness checking, even thickness, minimum polishing
Servo drive, effective overlap and joint control
Highly strengthened thread, improve product horizontal tensile force and flexibility, no break.
1 | Knife length | mm | 1,350 |
2 | Working veneer width | Max. mm | 1,300 |
3 | After jointing size | mm | 1,300x2600mm |
4 | Veneer thickness | mm | 1.0-4.0mm |
5 | Feeding speed | Max. m/Min | 32(can be adjust) 6-7sheet (4*8ft) |
6 | Number of glue threads | Rows | 5-7 |
7 | Total power required | KW | 16 |
8 | In- feed conveyor (controlled by Servo Motor) | KW | 3 |
9 | Out feed conveyor (controlled by Servo Motor) | KW | 3 |
10 | Dimension clipper | KW | 1.5 |
11 | Cooling fan | KW | 0.33 |
12 | Water cooler | KW | 1.7 |
13 | Water circulation pump | KW | 0.08 |
14 | Heater for glue melting for edge and yarn application | KW | 5.5 |
15 | Air consumption | Liter/Min | 60 |
Note: 1.The fourth generation, Stable operation, Repair simple, Low power cost. 2. Synchronous Servo motor controlled, effective overlap and joint control;Clipper controlled by Clutch motor, improve efficiency, No burr; 3. CE approval
| |||
Contact with us if you need. (wechate/whatsapp:+86 13791508310)
