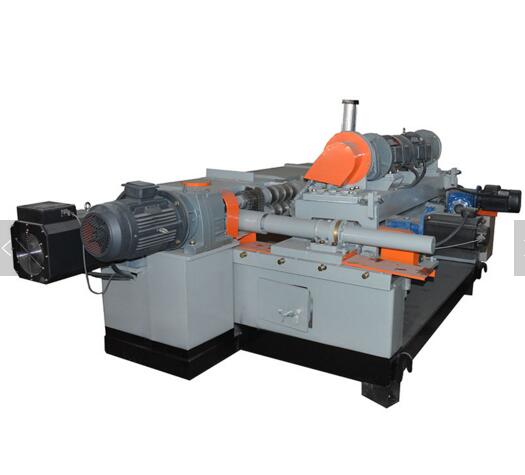

4 feet plywood veneer peeling machine

1. High performance CNC system control feeding. The board is smooth, with high productivity.

2. The feeding system adopts the screw and screw nuts. The screw nuts adopt the magnesium aluminum alloy, copper and other materials. So it is with long service life.

3. Automatic adjustment of cutting system, skin is much more uniform and smooth. Apply to woods with different diameters.

4. During the rotary cutting production, the machine can adjust the thickness of two kinds of veneer constantly and won't cause the crack of the veneers.

5. Block type screw and slider, high-precision and energy-saving.

6. The NC rotary and leather cutting are in one, so the machine is with high productivity and labor-saving.
Availability:
Quantity:
  • CXXQ1300

  • CHANGXING

  • 84659400

Specification of Veneer Peeling Machine

4ft veneer peeling machine

Max peeling length
1300 mm
Diameter of peeler log
φ 28 mm ------ φ 600 mm
Thickness of veneer peeler
0.5mm ------ 4.0 mm
Size of blade
1400  mm
Diameter of driving roller
125mm
Diameter of driving roller
7.5 KW *2 for double roller
5.5 KW *2 for single roller
11 KW servo motor of feed
Guide screw
90mm
The line speed
40 -- 85 m /min
Overall dimension
4300 *2200 * 1500
Weight
6.5Tons
