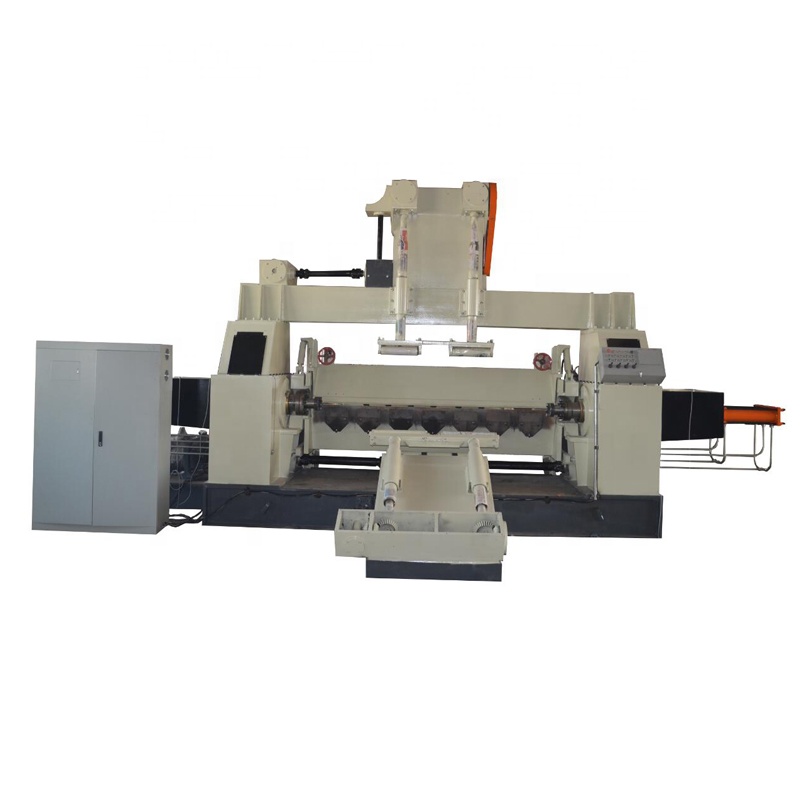

2700mm spindle face veneer peeling lathe

Spindle Face Veneer Peeling Lathe are mainly used for precious face veneer and big diameter logs peeling, like Okume, Birch, Beech, etc. Its min. peeling thickness can reach 0.1mm, max. peeling log diameter is 1500mm. Our machine have been exported to Russia, Gabon, India, Europe, etc for more than 30 countries. Its full automatic peeling line and accurate peeling thickness are highly welcomed from our customer. We adopts automatic Taiwan Delta control system, all motors are Huali brand, thickness adjustment is can be controlled by both CNC and gear. It is quality guaranteed machine.
Availability:
Quantity:
  • CXYK2600

  • Changxing

  • 84659400

Specification of Rotary Face Veneer Peeling Lathe

ItemVertical TypeHorizontal Type
Max. Log Diameter1500mm900mm
Peeling Thickness0.1-2.6mm0.1-2.6mm
Peeling Speed0-80m/min0-80m/min
Total Motor Power40.45KW40.45KW
Clamping ChuckDouble Mechanic ChuckDouble Mechanic Chuck
Total Weight8000KG7900KG
Overall Dimension6500mm*2350mm*2600mm6500mm*2350mm*2600mm
